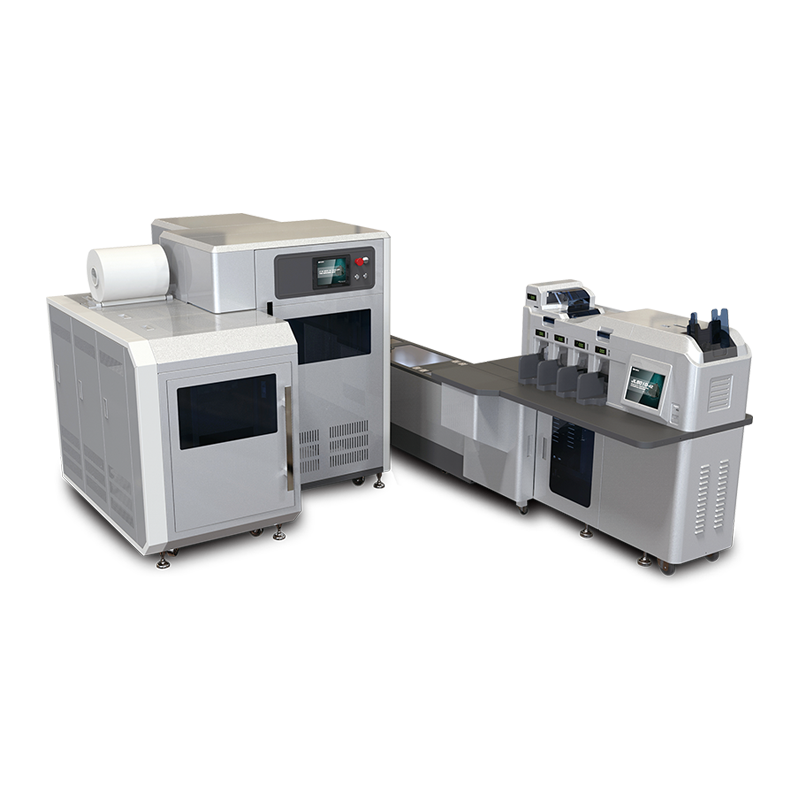

JL8000 Cash Processing System-Single Station
◇High Performance ◇Flexible and Reliable ◇Cost-Effective
JL8000 is an all-in-one cash processing system that integrates banknote sorting, binding, banknote transportation, shrink wrapping and stamping function into one working station, which is an ideal cash processing solution that saved much more working space and greatly enhanced cash processing efficiency.
Modular Design
√ Sorting and binding
√ Transportation
√ Stamping
√ Shrink wrapping
Sorting and Binding Module
.JL8010 Banknote Sorting and Binding Station
JL8010 incorporates banknote sorting functions with automated banknote binding function.
Technical Information
|
Capacity: |
Hopper: 1,000 notes |
|---|---|
|
NV Technology: |
Dual CIS, UV, Magnetic, IR |
|
Speed Range: |
counting 720 (100DPI) notes/min, sorting 720 (100DPI) notes/ min |
| S/N Reading: | 720 (100DPI) notes/ min, binding: 7binds/ min |
|
Banknote Size Range: |
Width 53-85mm, Length115-180mm |
|
Width of Binding: |
20mm, 40mm |
|
Display: |
10″TFT Color Display |
|
Connectivity: |
USB, LAN, Serial Port |
|
Operating System: |
Linux |
|
Power Supply: |
AC 198-240V 50/60HZ |
|
Power Consumption: |
380W |
|
Manufacturing Standards and Approvals: |
ISO9001, CE, ROHS |
|
Accessories: |
Additional Currencies, Remote Display, Integral Printer, Ticket in/Ticket out (TITO), Clearance Program, Serial Number Printing. |
Shrink Wrapping Module
JL116 Banknote Shrink Wrapping Machine
Equipped with PID intelligent control system and high efficiency heating source that enable the temperature is under control, which makes the temperature become more precise and stable.
JL116 enables to print bundle information on tapes, which reduce risks caused by manual operation. Any changes for bundle information are available without any cost.
Technical Information
|
Speed: |
42 packs/hour |
|---|---|
|
Power supply: |
22 0 V±10% |
|
Peak current: |
22 A |
|
Average power consumption: |
1000 W |
|
Dimensions: |
2948 ×2311 ×1390 mm (L ×W ×H) |
|
Net Weight: |
900 kg |
Stamping Module
Will automatically stamp the banknotes bundles with operator information.
Technical Information
|
Power supply: |
AC 220V±15% 50Hz-60Hz |
|---|---|
|
Power consumption: |
100 W |
|
Dimensions: |
1730×1550 ×512mm (L×W×H) |
|
Net weight: |
150 kg |
(Notes: this technical information is for reference only)
