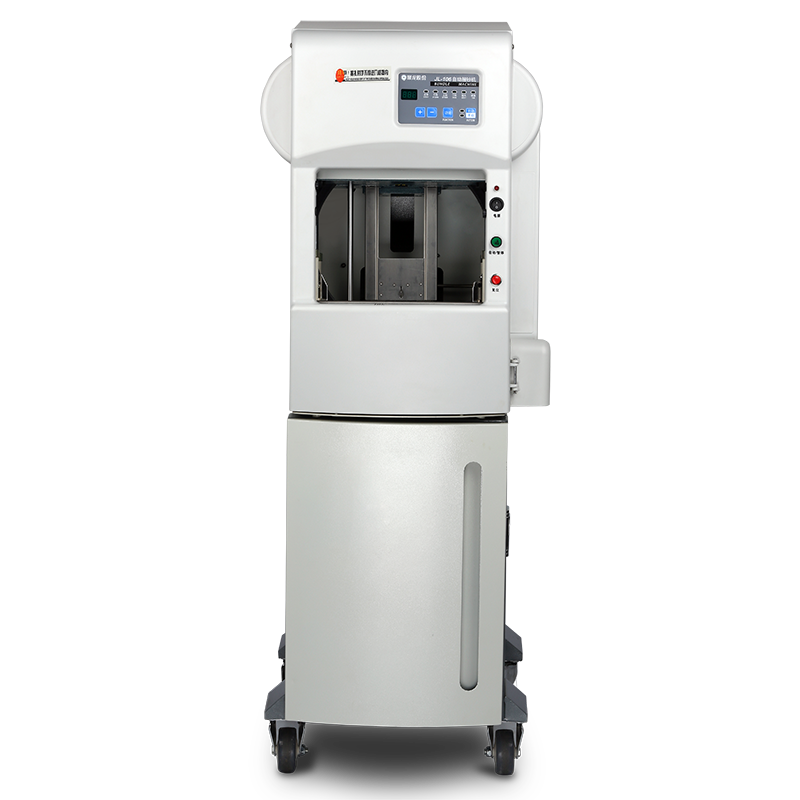

JL106 Automatic Banknote Strapping Machine

Advanced Technology

  • Baffle is able to be adjusted on the basis of note size
  • Digital display indicates operation status code
  • Function keys: On /Off, Strapping, Temperature, Pressure
  • Modes: Auto, Semi-Auto, Manual
  • Double cross strapping

Easy to Use and Operate

  • Featured with built-in infrared security device, JL106 will give an alarm and shut down if hands, arms or other foreign objects coming.
  • The system will stop automatically if no operation within 30 minutes.
  • The dust generated during operation will be automatically connected into active carbon control device to increase uptime of the machine.

Benefits

With its outstanding capability, JL106 brings more benefits to your business process as it enables you to:

  • Increase productivity with advanced technology which allows our users to complete their work faster and more efficient.
  • Enhanced service quality with tightly and neatly strapped banknotes.
  • Reduce operational cost and provide product of equivalent quality.

Technical Information

Tape Width:

14 mm

Quantity:

1,000 notes/bundle

Pressure:

600 kg-1400 kg (adjustable)

Length of Loop:

20 levels

Bonding Overlapping:

100 levels

Strapping Tension:

100 levels

Strapping Speed:

3.5seconds per strap

Power Supply:

220 V + 10%  50Hz

Power Consumption:

300W

Operating Temperature:

0-40℃

Dimensions:

Desktop: 480 × 560 ×650 mm (W×D×H)
Standing: 480 × 560 ×1220 mm (W×D×H)
Installation: Desktop/Standing

Weight:

Desktop: 73 kg
